S Plan vs Y Plan Heating Systems: Benefits, Drawbacks, and Comparison
The idea of home heating came with the invention of fireplaces. These devices gave people the ability to keep their space warm while spending time in other rooms. However, we’ve gotten used to our homes being temperature controlled, and this has led to some advancements in home heating design. One example is the S plan heating system, which is the most popular among residents and landlords in the UK. This article will discuss in detail what an S Plan Heating system looks like, why it’s so popular, and how it differs from Y plan heating systems.
There are many types of heating systems, but the S plan is one of the most popular. This system is used to heat homes and includes a two-port motorised valve. The S plan relies on a series of pipes and ducts to deliver warm air to the rooms that need it. This system can be used to heat a single room or an entire building. The second most popular type of heating system is the Y plan, which includes a three-port motorised valve and is a little more complex as compared to the S plan. Let’s discuss both in detail!
S Plan Heating System
If you have a central heating system in your home, chances are it’s an S plan heating system. This type of system is built with two-port motorised valves and is very common in UK homes, consisting of a few key components: a boiler, a hot water cylinder, and a series of pipes and radiators. Here’s a quick overview of how an S plan heating system works:

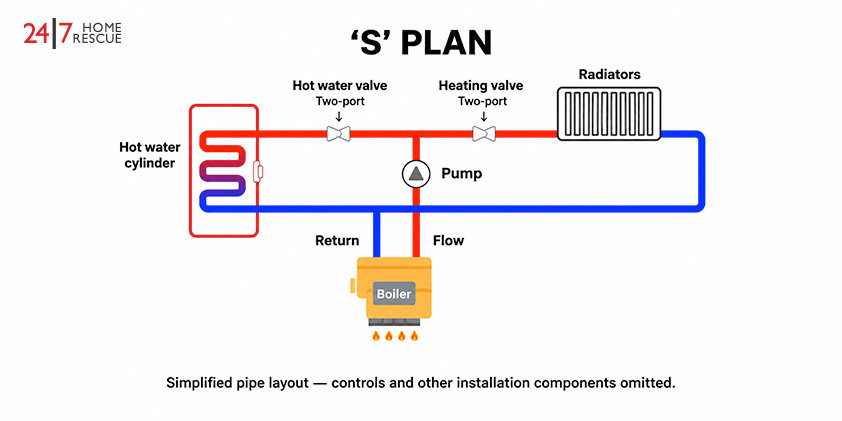

S Plan Heating System Pipe Layout
S Plan Heating System Wiring Diagram
S system heating schematics use the smallest number of pipes. This keeps the system extremely simple and convenient to use. You can see that you have 3 legs: a hard loop that turns around (the vertical line), and 2 loops that make up the horizontal rack.
These aren’t complicated designs by any means and should be able to solve your problem with soft loops in mind. Once again, these are smaller systems that don’t require cold water storage or pumps. Breaking them into these small units makes them easier to maintain and transport if you need to move them around during placement.
Benefits of S Plan Heating System
The advantage of an S plan heating system is that it is very efficient and can be easily controlled via a central thermostat. With this type of system, you can also set different temperatures for different times of the day (e.g., lower at night when you’re asleep), which can help to save energy and money.

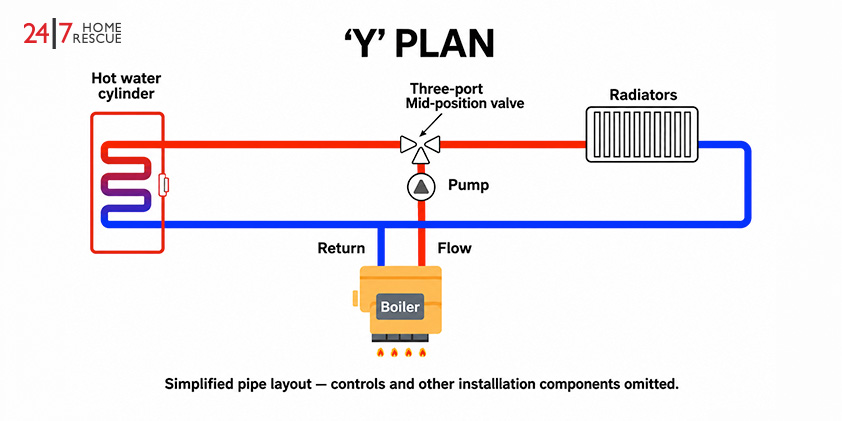

Y Plan Heating System
A Y Plan Heating System has a central heating three-port valve that controls both the central heating and the hot water. It also includes a room thermostat, a cylinder thermostat, and a programmer. A heating programmer can be depended on to provide a variety of services, depending on what type of heating you need. Hot water is supplied by the system and needs to be diverted either to your radiators or hot water coil.
Benefits of Y Plan Heating Systems
The benefits of the Y Plan Heating System are that it has an HVAC timer to ensure that your home will be warm in the winter. It consumes fuel efficiently and saves you money. Plus, it comes with very few parts, which makes it much easier to install.
Drawbacks of Y Plan Heating System
Although Y Plan heating systems are common in many homes, there are also some disadvantages. It’s important for qualified engineers or installers to know how they work when operating them.
This boiler is limited to a single heating zone, meaning that the flow rate must be shared between hot water and central heating. Another limitation is your reliance on this one valve, which means that if it fails, you will be without both central heating and hot water until it is replaced.
Another problem with a Y plan heating system is that when the demand for hot water and central heating in your home is lower, the valve can get stuck. This can lead to burned-out motors because you don’t use them enough.
Comparative Analysis Between S Plan and Y Plan Heating Systems
If you have a central heating system in your home, then you may be wondering what the difference is between an S plan and a Y plan system. Both are common types of systems, but there are some key differences that you should be aware of. Here’s a look at the difference between S and Y plan heating systems.
S plan systems are the most basic type of central heating system. They consist of a single room thermostat that controls the entire system. There is no zone control with this type of system, so all the rooms in your home will be heated or cooled at the same time. This can be disadvantageous if you have rooms that are not being used frequently, as they will still be heated or cooled even when they don’t need to be.
Y plan systems are more complex than S plan systems. With a Y plan system, you have a central controller unit as well as individual thermostats for each zone in your home. This allows you to set different temperatures for different areas of your home, which can save you money on your energy bills. You can also set specific times for each zone to be heated or cooled, so you’re not wasting energy heating or cooling empty rooms.
Conclusion
The popular S Plan heating system is a great choice for larger homes. The ability to add an additional heating zone proves useful when it comes to controlling the temperature of your home. The clever trick with this system is that you can have your heating and hot water delivered by separate systems.
That way, you don’t need to be using both at the same time; this cuts down on your monthly energy costs and ensures that you have better temperature control in your house.
